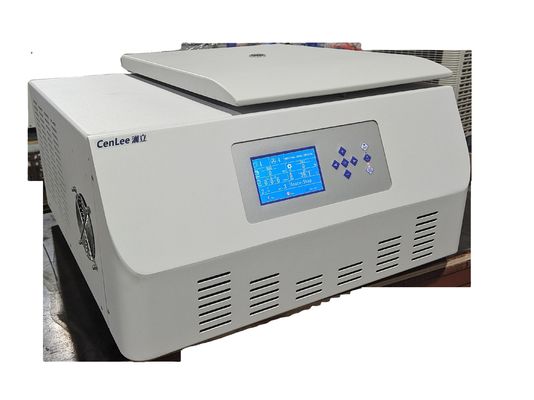

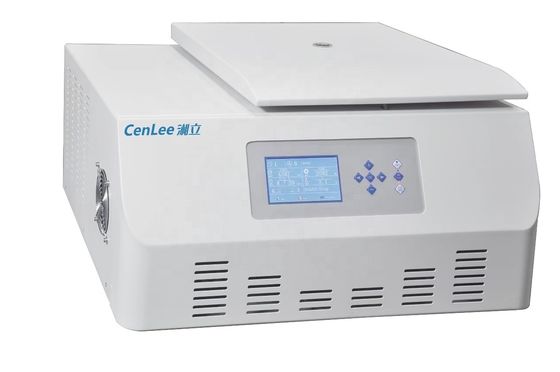

TDL5M Microcomputer Control Refrigerated Centrifuge with 5120 RCF and Swing-out Rotor for Blood Bank

Name: TDL5M Microcomputer Control Refrigerated Centrifuge with 5120 RCF and Swing-out Rotor for Blood Bank
Brand: Changsha CenLee Technology Co., Ltd,
SKU: TDL5M
Price: 50,000,001.00 USD
Availability: InStock

الاسم التجاري:	Cenlee
رقم الطراز:	TDL5M
الـ MOQ:	1

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

هونان، الصين

السرعة القصوى:

6000 ص / دقيقة

ماكس RCF:

5120 x غ

السعة القصوى:

4 × 250 مل

نوع التحكم:

المعالج الدقيق

نوع القيادة:

محرك تحويل تردد التيار المتردد

معدلات التسارع:

معدلات الكبح:

نطاق السرعة:

50-6000 دورة/دقيقة

دقة السرعة:

± 20 ص / دقيقة

نطاق درجة الحرارة:

-20 إلى +40 درجة مئوية

دقة درجة الحرارة:

± 1 درجة مئوية

نطاق الموقت:

0-99:59:59

مستوى الضوضاء:

≥ 58 ديسيبل

مزود الطاقة:

220/110 فولت (50/60 هرتز)، 18 أمبير، مرحلة واحدة

أبعاد:

700 × 660 × 410 ملم

وزن:

95 كجم

إبراز:

5120 RCF Refrigerated Centrifuge,Microcomputer Control Blood Bank Centrifuge,Swing-out Rotor Laboratory Centrifuge

Microcomputer Control Blood Bank Centrifuge

Swing-out Rotor Laboratory Centrifuge

وصف المنتج

TDL5M 24x 10ml Tabletop Low Speed Swing Out Horizontal Centrifuge Refrigerated

TDL5M Tabletop Low Speed Refrigerated Centrifuge machine for Medical use

Key Features

Suitable for various applications including radio-immunity, water treatment, biochemistry, and separation/purification of blood
Microcomputer control with high frequency conversion motor for long service life without powder pollution
Multiple rotor options with tube racks and adapters for diverse separation needs
Large LCD or 0.8 LED display options available
User-friendly operational panel with programmable functions for speed, time, RCF, acceleration and braking rates
Storage capacity for up to 25 protocols with LCD display
9 acceleration and 10 braking rates (including free brake option) with 3-level damping system
Comprehensive safety features including over-speed protection, misoperation prevention, speed fault detection, and imbalance shutdown

Technical Specifications

Model	TDL5M
Max. Speed (r/min)	6000
Max. RCF (x g)	5120
Max. Capacity (ml)	4 x 250
Control	Microprocessor
Drive	AC Frequency Conversion Motor
Acceleration/Braking Rates	10/10
Speed Range (r/min)	50-6000
Speed Control Accuracy (r/min)	±20
Temperature Set Range (°C)	-20 to +40
Temperature Control Accuracy (°C)	±1
Timer Range	0-99:59:59
Noise (dB)	≤ 58
Power Supply	220/110V (50/60Hz), 18A, single phase
Dimensions (W x D x H) mm	700 x 660 x 410
Weight (kg)	95

Rotor Specifications

Rotor Type	Rotor No.	Max. Capacity (place x ml)	Max. Speed (rpm)	Max. RCF (x g)	Tube Size (Range, ml)	Adapters for smaller tubes
Fixed Angle Rotor	1	12 x 10	6000	5120	1.5-10	Available

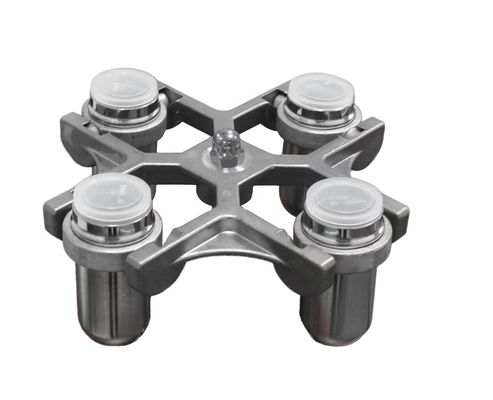

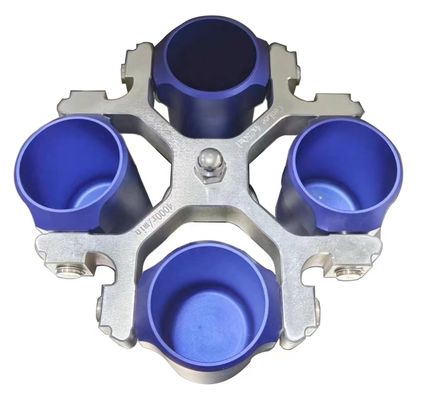

Swing-out Rotor(250ml) with round buckets	2	4 x 250	4000	3500	5-250	N/A
Adapter		4 x 50	4000	3500	50	N/A
Adapter		4 x 4 x 10	4000	3500	10	N/A
Adapter		4 x 10 x 5	4000	3500	5	N/A

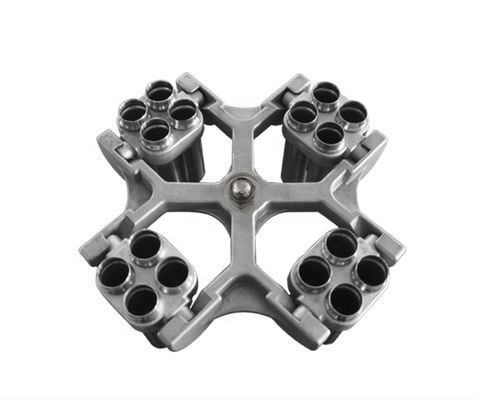

Swing-out Rotor with tube holders	3	4 x 100	5000	4390	0.2-100	Available
Swing-out Rotor with tube holders	4	8 x 50	4200	3100	5-750	Available

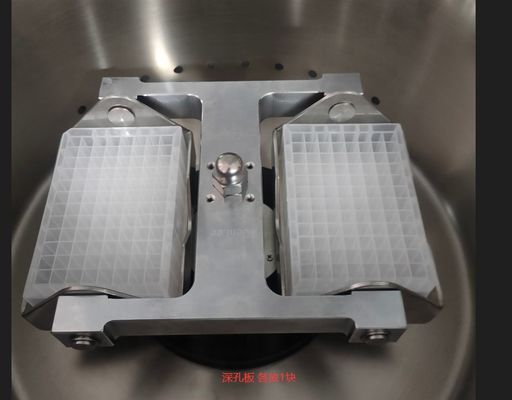

Microplate Rotor	7	2 x 2 x 96wells	4000	2200	0.2	N/A
